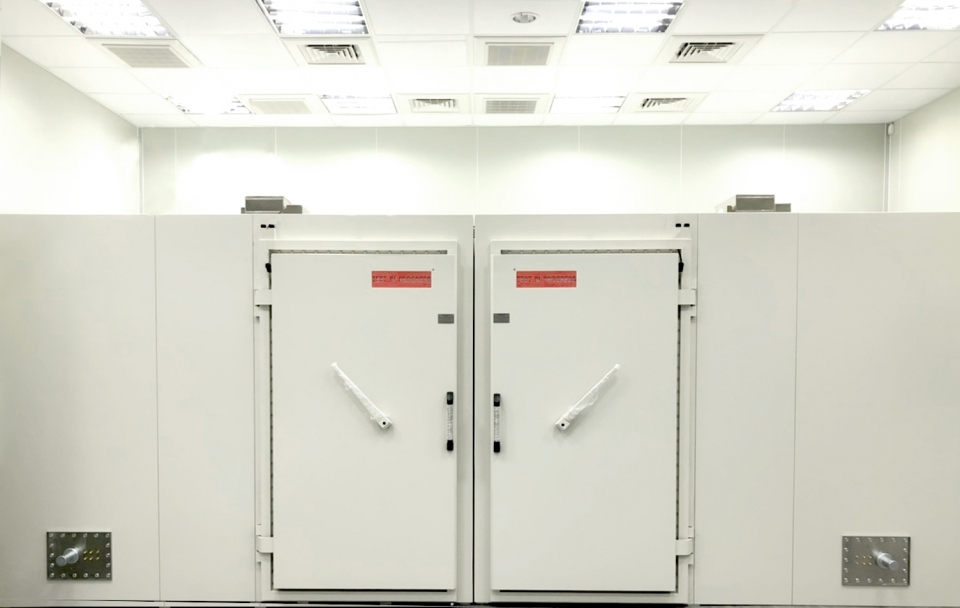

RF Shielded Enclosures

  • RF Shielded Enclosures
    HANRUIN's  Radio  Frequency  Shielded  Enclosure  uses a  time-proven  design  for  superior
    RF   Shielding   and  EMI  Shielding  applications.   These  EMI/EMC  shieldedenclosures  have
    modular panels can be built to almost  any  dimensional  configuration.  And we can  custom
    design a configuration that best fits your needs, including solutions with unique  geometries,
    shielded doors, filters, through connectors, and integrated  waveguide, air vents.  Enclosures
    can  be  erected,  dismantled,  and  moved  to  another  location  as  needed.   Enclosures  are
    self-standing  and  do  not  require  attachment  to  the  parent  building.


    Key Features
     The modular construction allows for almost unlimited size and configurations.
     The panels are connected using bolts and an electrically conductive mesh gasket is fitted between each  joint.
     The panel material is 2 mm thick galvanized steel sheet to ensure maximum shielding performance and
        corrosion resistance.

     Honeycomb Vents for air conditioning.
     RF Shielded Door
     Pulse Protected Powerline Filters
     Pipe Penetration for diesel, water, and gases.
     Shielding Effectiveness Meets or Exceed Mil Std 188-125

  • Specification
     External dimensions(WxDxH) : 2400 x 2400 x 2400mm
        (Custom Designs are Available according to field site requirements)

     Internal Dimensions (WxDxH) : 2300 x 2300 x 2270mm
     The main material : galvanized steel plate
     surface Treatment : ivory white paint
     Applicable frequency bandwidth : 10KHz - 60GHz (according to regulations EN 50147-1)
     through connectors : SMA / BNC / N/ Waveguide
     Shielded door size (WxH) : 1000 x 2000mm
     Door Open & Close mode : manual / pneumatic / electric
     Power Supply specifications : 30Amps/50 Amps/100 Amps/200 Amps
        (configured according to customer requirements)

     Honeycomb Vent (LxWxH) : 300 x 300 x 50mm
     Interior Lighting : Non-intrusive lamps
     Internal Power Distribution : implemented in accordance with electrical regulations.
     Shielded Effectiveness :
        10-100kH : ≧60dB
        100-kHz-1MHz : ≧80dB
        1MHz-40GHz : ≧100dB
