HR400
-
Structure
1. Inner Conductor ：Silver Plated Copper Wire
2. Insulation ：PTFE
3. Inner shield ：Silver Plated Copper Strip
4. Outer shield ：Silver Plated Copper Wire
5. Jacket ：Blue FEP
-

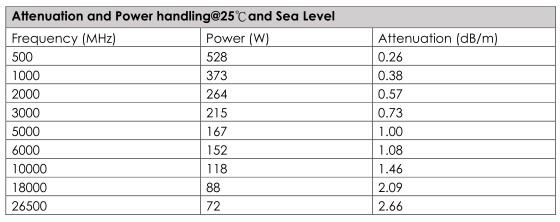

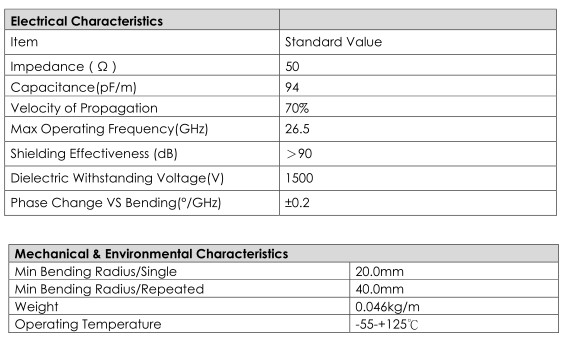

Specification
Remark :
HANRUIN provides high-performance low-loss RF coaxial cables with frequencies
from DC to 18GHz, 26.5GHz, and 40GHz. The connectors and coaxial cables can
be customized according to customer requirements. HANRUIN will have dedicated
personnel to help customer provide the best solution is an ideal choice for R&D,
production testing and interconnection of RF and microwave products in various
wireless systems.
-
