HR-PHB-505040 Pneumatic
Model Number：HR-PHB-505040-
Overview
The pneumatic RF shield box is designed for production by controlling the door or lid
automatically using air pressure. It not only have buttons to open and close the door
or lid but also can be controlled by RS-232C for full automation. In addition, Power and
I/O connection for DUT, RF testing can be also automated. HanRuin Pneumatic shielding
box supports broad band testing frequency and provides optimal testing condition to
test wireless device.
Key Features
▌ Outstanding durability and simple structure
▌ Convenient use and maintenance
▌ High performance RF absorber
▌ High shielding effectiveness
▌ Support automatic and manual operation to do door/lid control
▌ Additional filters support an I/O interface panel to apply various interface
▌ Optional Accessories :
Card Bus Reader
Card Bus to Mini PCI Adapter
Card Bus to PCI Adapter
Card Bus to Card Bus Adapter
PCI-e mini extend card -
Specification
Shielding Effectiveness :
>80 dB@2.4 GHz and 5.8 GHz
Dimension :
Outside : W 600 x D 650 x H 400 mm
Inside : W 480 x D 480 x H 380 mm
Weight : Approx. 40kg
Box color : white
Structure : Galvanized steel plate
SMA connector : 6pcs
Fixture air connector : 4 mm OD hose
Box air connector : 6 mm OD hose

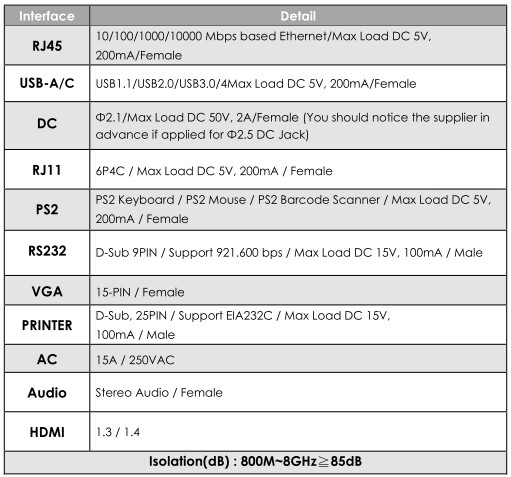

Filter specification (Option)
Shielding box Outline
1. Air input
2. AC input and Switch
3. Speed controller (open / close)
4. RS232 port
5. SMA
6. Space for filter
7. Hinge : Pair roller bearing

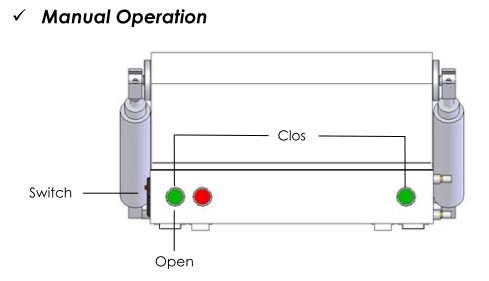

Operating instruction
Open the box : Pressing the red button or remote control by computer
Close the box : Pressing both green buttons at the same time or remote control by computer
Conclusion
PHB-505040 is a pneumatic operating shielding box and designed for the mass production
line. The internal and external structures are all consist of electronic and machinery
component, the client should notify the supplier when the operation is extraordinary, We
will provide the appropriate assistance as soon as possible.
-
