Overview
The HANRUIN Shielding Box is wide frequency band supporting range from 600 to 8000 MHz, and
can be applied to most of the current and future wireless communication technologies such as GSM,
WCDMA, WiMAX, LTE, GNSS, Bluetooth, and Wi-Fi. Therefore, it can be used for mobile device
measurement using multi-frequency bands without limitations and is ideal for mobile device
measurement by maintaining stable and effective shielding performance in all frequency bands.
Key Features
▌ Easy Opening/Closing of lid(Side Opening Type)
▌ Higher RF Isolation
▌ High Performance RF Absorber lining
▌ Powered by AC / DC Power Filter lines
▌ User Defined & Interchangeable I/O Connector Panels
▌ Designed to test complete systems
▌ Fully customizable Shielded Enclosure
▌ Lightweight Rack Mountable or Tabletop Options
▌ Rugged Stainless Steel Welded Construction
▌ Wireless device testing
▌ Perfect for 802.11 – all series
▌ GSM、3G、4G、5G、LTE testing
▌ Bluetooth, GNSS, RFID, ZigBee testing
-
Shielding Box Specifications
Isolation :
500M~8GHz≧80dB
Dimension :
Outside : W 350 x D 350 x H 350mm
Inside : W 350 x D 350 x H 350mm
Weight : Approx. 18 Kg
Box color : white
Structure : Galvanized steel plate
Absorber Reflectivity
Frequency / Reflectivity(dB)
500M~8G : -20dB Maximum
I/O Option
User Defined Input / Output Interface Filter Options :
Ethernet - 100M、1G、10G
USB 2.0 & 3.0
AC / DC Power filter
RJ11
Audio
AC / DC Power filter
Air ventilation with AC or DC fan
Waveguide for fiber insertion
ST Fiber connector
RF Ports : SMA, BNC, N

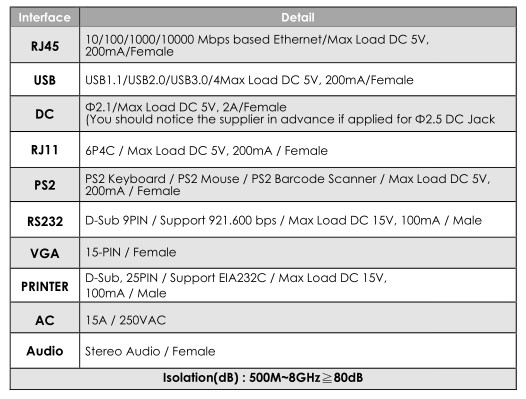

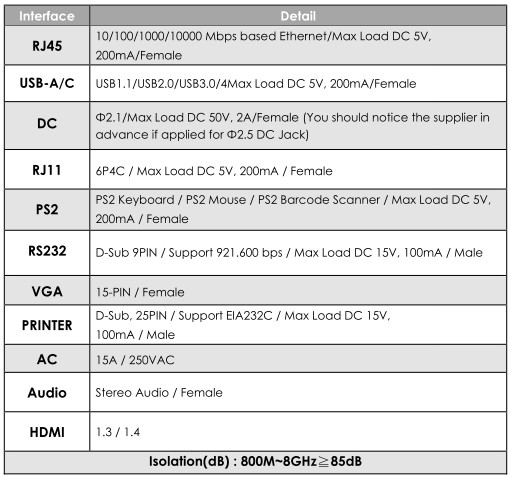

Filter specification
-
