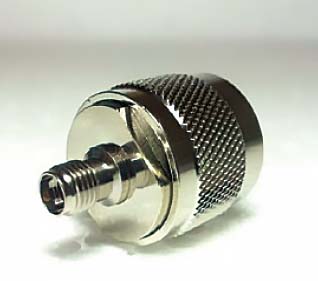

N Male to SMA Female Adapter
-
Key Features
▌ Frequency : DC-6GHz
▌ Impedance : 50Ω
▌ VSWR : 1.2 Max
▌ Insertion Loss : <0.2dB
▌ Shell : Brass, Ni
▌ Center contact : Gold
▌ Temp. Range : -65℃ ~ +155 ℃
▌ Durability : 500 Cycles
Outline Drawing(mm)
Tolerance : ±0.2mm
-
